Cov lus qhia
|
Tus kab mob, Tus kab mob TBC, TOV TUG TOV CI TES TOV KHOOM |
||||||
|
Tus qauv |
Lub cev muaj zog |
Ua hauj lwm |
Max Dawb Ceev |
Impeller loj (nti) |
Sib xyaw ncej |
Viscosity |
|
TB Series (rau 20-50 l nruas) |
||||||
|
Dam 2- tb |
1/6 |
6Bar |
0-2000 |
5 "* 1pc |
12*500 |
2000 |
|
Dam 4- tb |
1/3 |
0-1800 |
6 "* 1pc |
16*500 |
5000 |
|
|
Dam 6- tb |
3/4 |
0-1400 |
6 "* 1pc |
16*500 |
15000 |
|
|
Dav 2- tb |
0.93 |
0-3000 |
5 "* 1pc |
12*500 |
2000 |
|
|
Dav 4- tb |
1.7 |
0-3000 |
6 "* 1pc |
16*500 |
5000 |
|
|
Dav 6- tb |
4 |
0-3000 |
6 "* 1pc |
16*500 |
10000 |
|
|
TBC Series (rau 20-50 l nruas) |
||||||
|
Dam 2- tbc |
1/6 |
6Bar |
0-2000 |
5 "* 1pc |
12*310 |
2000 |
|
Dam 4- tbc |
1/3 |
0-1800 |
6 "* 1pc |
16*310 |
5000 |
|
|
Dam 6- tbc |
3/4 |
0-1400 |
6 "* 1pc |
16*310 |
15000 |
|
|
Dav 2- tbc |
0.93 |
0-3000 |
5 "* 1pc |
12*310 |
2000 |
|
|
Dav 4- tbc |
1.7 |
0-3000 |
6 "* 1pc |
16*310 |
5000 |
|
|
Dav 6- tbc |
4 |
0-3000 |
6 "* 1pc |
16*310 |
10000 |
|
|
TBS series (rau 1-10 l drums) |
||||||
|
Dam 2- tbs |
1/6 |
6Bar |
0-2000 |
C -2 "} -4" "1pc |
12*280 |
2000 |
|
Dam 4- tbs |
1/3 |
0-1800 |
C -2 "} -5" "1pc |
12*280 |
5000 |
|
Cov lus piav qhia rau kev kuaj xyuas cov pa tov khoom tov khoom

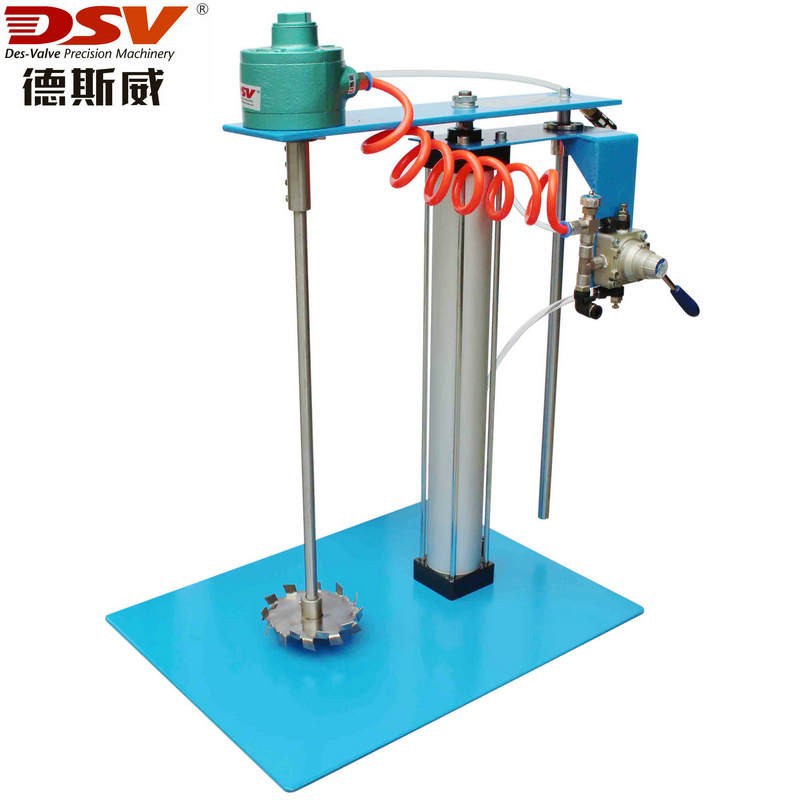

TB Series (rau 20-50 l nruas)
Haum rau 20-50 l drums, pneumatic stirrer rau xim sib tov, kua tov lossis kua ua kua.
Pneumatic lifting, nrog reversible tswj valve, yooj yim nce thiab nqis.
Tus qauv nqa qhov siab yog 500 hli, qhov siab tuaj yeem yog kho tau.
TBC Series Rau Cov Khoom Siv Pneumatic Rau Cov Xim (Rau 20-50 l nruas)
Haum rau {{0} litre drits, pneumatic lifting.
Cov qauv nce qhov siab 350mm, qhov siab yuav raug Mekas.
Nruab nrog stainless hlau thoob cover npog kom tiv thaiv impurities los ntawm kev nkag mus rau hauv lub thoob, npog yog qhov zoo nkauj thiab du, yooj yim los ntxuav, tsis muaj residue.
Cov khoom siv uas xaiv tau muaj xws li muaj cov twj tso kua mis pneumatic pneumatic pneumatic pneumatic, tachometer, txav tau yooj yim thiab lwm yam.

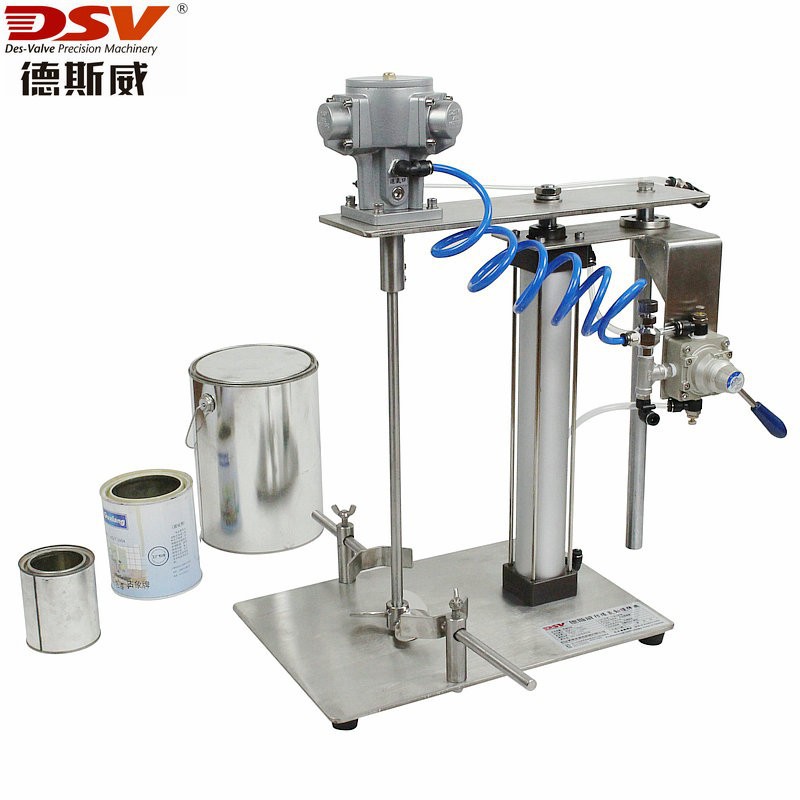

TBS series (rau 1-10 l drums)
Haum rau 1-10 l Thawv xyaw tov, kuaj cov ntawv thov, xws li cov tshuaj pleev ib ce pneumatic.
Txheem Lifting qhov siab 300mm, tuaj yeem yog Mekas.
Compressed huab cua raws li lub zog, kev nyab xeeb thiab tawg-pov thawj, kev qias neeg-dawb.
Nruab nrog kev tswj hwm kev tswj hwm kev tswj hwm valve, nws tuaj yeem kho cov inlet cua ntim kom ua tiav ceev, yooj yim mus tau pib.

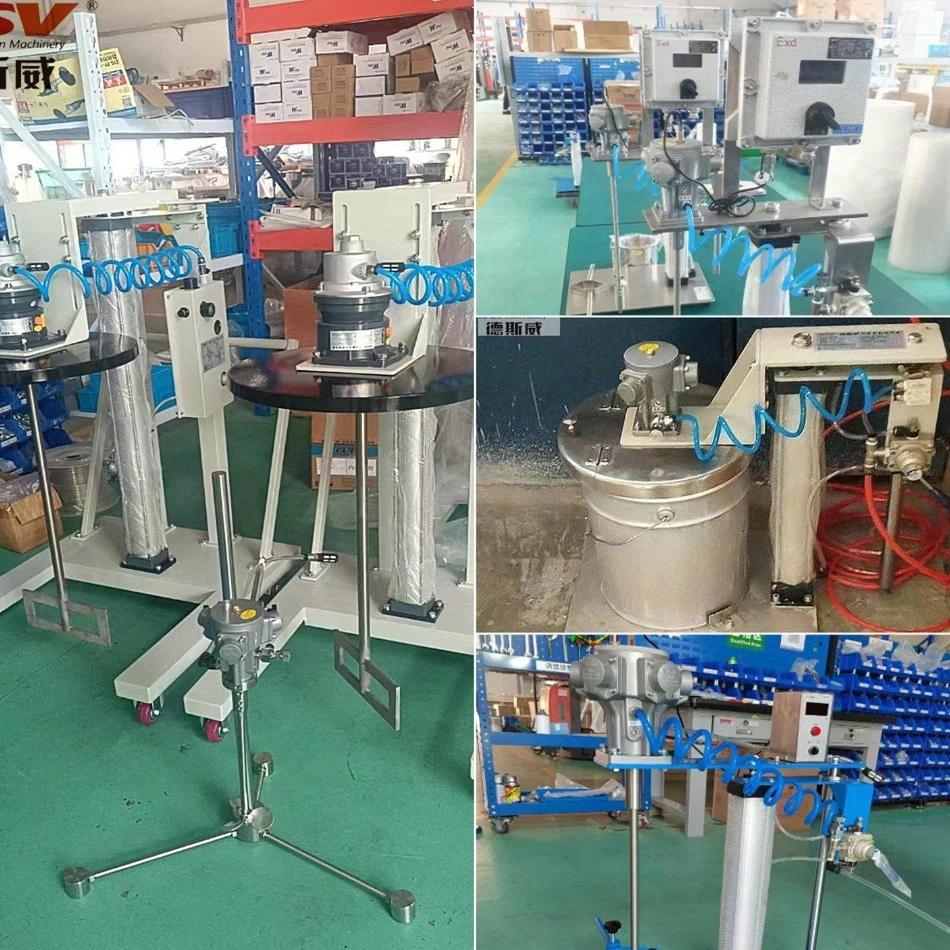

Cov Pics Ntau Lawm rau DSV Pneumatic Blender
