Hauj lwm lawm

Kev Ua Tshwj Xeeb

Tu, Tul Autow Cua Txias Tov Khoom (rau 55 nkas loos tsheb sib tov)
Tus qauv	Lub cev muaj zog (HP)	Ua hauj lwm nyem	Max Dawb Ceev (RPM)	Impeller loj (nti)	Sib xyaw ncej Sus304 (hli)	Viscosity (CPS)
Dam 4- tu	1/3	6Bar	0-1800	8 "* 2pcs	Ø16*H1050	5000
Dam 6- tu	3/4		0-1400	10 "* 2pcs	Ø20*H1050	15000
Dam 7- tu	1.5		0-720	12 "* 2pcs	Ø25*H1050	25000
Dav 4- tu	1.7		0-3000	8 "* 2pcs	Ø16*H1050	5000
Dav 6- tu	4		0-3000	10 "* 2pcs	Ø20*H1050	10000
Dav 8- tu	5.2		0-2500	10 "* 2pcs	Ø20*H1050	20000
Nco tseg:Tu Series yog txawb pneumatic liftting tov khoom rau 50 nkas nruas tov tov; Tul yog tib yam los tu, tab sis ntxiv qhov stainless hlau nruas npog; Ob leeg tu thiab tul series tuaj yeem ua los ntawm cov hlau tsis xeb.

55R Clamp Mount, 55T 2 "Bung nkag, 55c Kab rov tav bracket Mount, 55f nrog SS cover (rau 55 gallon chomel tov khoom)
Tus qauv	Lub cev muaj zog (HP)	Ua hauj lwm nyem	Max Dawb Ceev (RPM)	Impeller loj (nti)	Sib xyaw ncej Sus304 (hli)	Viscosity (CPS)
55r clamp mount
Dam 4-55 r	1/3	6Bar	0-1800	8 "* 2pcs	16*850	5000
Dam 6-55 r	3/4	6Bar	0-1400	8 "* 2pcs	16*850	15000
55T 2 "Bung nkag
Dam 4-55 t	1/3	6Bar	0-1800	8 "* 2pcs	16*850	5000
Dam 6-55 t	3/4	6Bar	0-1400	8 "* 2pcs	16*850	15000
55c Kab rov tav bracket Mount
Dam 4-55 c	1/3	6Bar	0-1800	8 "* 2pcs	16*800	5000
Dam 6-55 c	3/4		0-1400	10 "* 2pcs	20*800	15000
Dam 7-55 c	1.5		0-720	10 "* 2pcs	20*800	25000
Dav 4-55 c	1.7		0-3000	8 "* 2pcs	16*800	5000
Dav 6-55 c	4		0-3000	10 "* 2pcs	20*800	15000
Dav 8-55 c	5.2		0-2500	12 "* 2pcs	20*800	25000
55f nrog ss cover
Dam 4-55 f	1/3	6Bar	0-1800	8 "* 2pcs	16*750	5000
Dam 6-55 f	3/4		0-1400	10 "* 2pcs	20*750	15000
Dam 7-55 f	1.5		0-720	12 "* 2pcs	20*750	25000

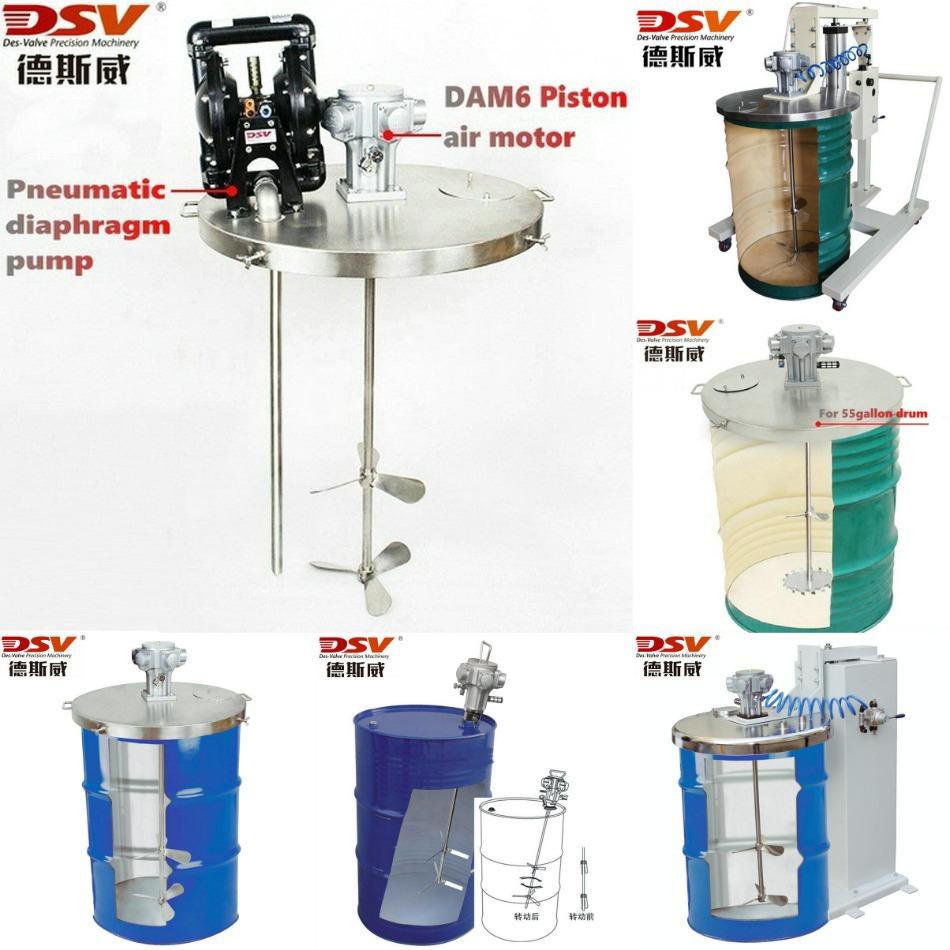

Pneumatic Nruas Nruas Tov Khoom Cov Khoom Tseem Ceeb Cov yam ntxwv

1. Cua lub cev muaj zog: Cov khoom siv tseem ceeb ntawm cov cua tov khoom yog huab cua lub cev muaj zog, uas yog lub luag haujlwm rau kev hloov cua tshuab hluav taws xob kom muaj zog. Piston cua lub cev muaj zog feem ntau yog suav txog lub tog raj kheej, piston thiab txuas cov pas nrig (lub zog siv roj av, nrog cov kab mob, thiab lwm yam.

2. Stirring impeller: nplawm impeller yog ib feem ua haujlwm pneumatic, uas txuas nrog cov ncej huab cua los ntawm cov huab cua huab cua los ntawm lub voj voog stirring thiab lub coupling. Tus impeller feem ntau yog tsim nrog ntau yam ntawm cov duab, uas tuaj yeem raug xaiv raws li cov kev ua haujlwm tshwj xeeb, thiab muaj peev xwm ua tau zoo shearing cov kua kom ua tiav cov nyhuv ua tiav.

3. Bracket: bracket yog cov qauv txhawb nqa ntawm cov ntaub ntawv siv hlau thiab muaj ntau hom clacket, suav nrog cov khoom siv hlau, lub siab tawv nkag mus bung bracket, txawb khoom txawb lossis tsau pneumatic nqa sawv ntsug sawv ntsug sawv ntsug sawv ntsug sawv ntsug sawv ntsug sawv ntsug sawv ntsug. Kev txhawb nqa yuav tsum muaj cov yam ntxwv ntawm cov ruaj khov zoo thiab lub zog siab, uas tuaj yeem xyuas kom muaj kev ruaj ntseg ntawm cov pneumatic ntawm cov txheej txheem ua haujlwm.

DSV Cua Powered Tov Khoom Ntaus Qhov Chaw Xaiv

1. Bidirectional Pneumatic Tsav Chaw Xaiv.

Tsav hom	Qho sib txawv
Piston Motors	Txo kev ceev, ntau dua cov pa roj av, tsis-lubricated, qes.
Vane air Motors	Kev nrawm nrawm nrawm, huab cua siab tau txais kev noj, kev co me me. Cov hlau cam khwb cia yuav tsum muaj lubrication, stainless hlau cua motors tsis-lubricated.

2. Tso zis ua kom muaj zog thiab nrawm yog xaiv nrog gearbox.

Yog tias kev sib xyaw ua ke uas xav tau ntau cov zis ntau dua tab sis qis nrawm, gearbox yog qhov kev xaiv zoo.

Suav nrog spur gearbox, helical bevel gearbox, carr gearbox, planertary gearbox thiab lwm yam.

3. Rau qee qhov xwm txheej tshwj xeeb nrog kev sib xyaw ntev ntev, DSV tuaj yeem muab cov qauv siv hlau nplaum tsis muaj peev xwm ua tau kev daws teeb meem, nws tuaj yeem ua rau muaj kev ruaj khov thiab txo qis tshee.

4. Txhua qhov sib xyaw ua ke, xws li cov ncej ntev thiab cov kab mob sib npaug, kev hloov kho tau, customization yog kev txhawb nqa.Cov cov ntsiab lus, thov hu rau peb.
